ROTISSERIE DESIGN

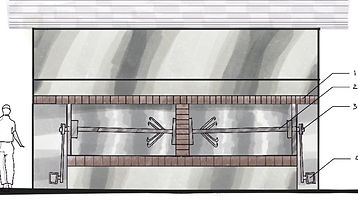

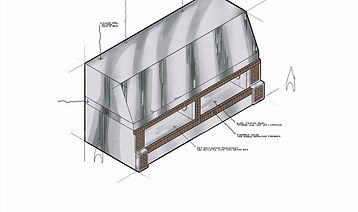

A3.1 – Elevation & Isometric
This custom rotisserie oven features a robust aluminum enclosure designed for high-heat cooking and easy maintenance. A tempered glass viewing window spans the front, allowing patrons to watch the cooking process. The spinning mechanism utilizes a gear-driven rod assembly powered by a heavy-duty electric motor, ensuring uniform rotation of the skewers for consistent roasting.
Heat is generated by a direct gas-fired combustion system, equipped with adjustable burners to regulate cooking temperature. Grease-laden vapors and smoke are captured by a dedicated Type I hood installed above the oven, per the requirements of the 2022 California Mechanical Code (CMC) and NFPA 96. The exhaust duct extends vertically through the building’s interior to the rooftop, maintaining proper clearances and termination above the roofline in accordance with the 2022 California Building Code (CBC) and local San Francisco regulations. The system includes accessible cleanouts and a fire suppression setup for safe operation.
DESCRIPTION
-
Aluminum Structural Frame – Provides a lightweight yet sturdy enclosure.
-
Tempered Glass Viewing Panel – Allows clear visibility of the cooking process.
-
Rotisserie Skewers – Mounted on a rod assembly for uniform rotation.
-
Section View of Internal Gear Mechanism – X-ray indication of the motor-driven gear system (not visible in the actual elevation).
LEGEND
1. Codes and Standards
○ All construction, materials, and installations shall conform to the 2022 California Building Code (CBC), 2022 California Mechanical Code (CMC), and local San Francisco amendments.
○ Hood installation and fire suppression shall comply with NFPA 96 for commercial cooking ventilation.
○ Structural supports and clearances must meet AIA best practices for commercial kitchen design and follow all local jurisdictional requirements.
2. Scope of Work
○ The design includes a custom aluminum rotisserie oven, direct gas-fired combustion system, and a Type I hood exhaust.
○ Final construction documents must be coordinated with mechanical, structural, and fire protection consultants to ensure code compliance.
3. Coordination
○ Verify exact exhaust routing with MEP drawings.
Coordinate final hood dimensions and clearances with kitchen equipment layout.
